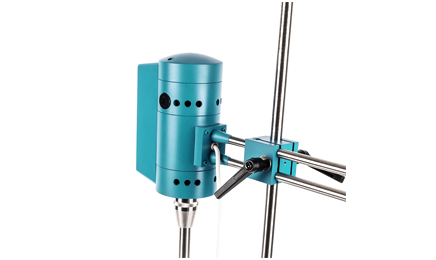

• High-speed shearing homogenizer
  • DH-F500
  • Suitable for mixing, emulsifying, homogenizing of liquid phases, dispersing solid powders in liquids, and crushing and homogenizing animal tissues.
  • DH-F500
  • High-speed shearing homogenizer
  • Suitable for mixing, emulsifying, homogenizing of liquid phases, dispersing solid powders in liquids, and crushing and homogenizing animal tissues.
This machine generates a powerful hydraulic shear effect through high-speed shearing and dispersion, drawing material in from the lower end of the rotor and ejecting it through the stator. It features high rotational speed, low noise, and electronic infinitely variable speed control with a constant speed display. Its main characteristic is the specially designed dispersion plate driven at high speed by the motor, which effectively disperses and mixes liquid materials in experiments. The materials in the liquid are mutually rubbed, collided, and repeatedly run irregularly to achieve dispersion and refinement. The maximum processing capacity can reach up to 10L.
Product Introduction
DH-F500 High-speed shearing homogenizer (also known as an electric tissue homogenizer) is suitable for mixing, emulsifying, homogenizing of liquid phases, dispersing solid powders in liquids, and crushing and homogenizing animal tissues. This machine generates a powerful hydraulic shear effect through high-speed shearing and dispersion, drawing material in from the lower end of the rotor and ejecting it through the stator. It features high rotational speed, low noise, and electronic infinitely variable speed control with a constant speed display. Its main characteristic is the specially designed dispersion plate driven at high speed by the motor, which effectively disperses and mixes liquid materials in experiments. The materials in the liquid are mutually rubbed, collided, and repeatedly run irregularly to achieve dispersion and refinement. The maximum processing capacity can reach up to 10L.


Main Features
● The driving motor adopts a series-excited micro motor with a large output power and compact structure, designed to be safe and reliable.
● The contact parts of the working head with the material are all made of stainless steel, with good corrosion resistance.
● The working head is connected to the driving motor through a coupling, making it easy and flexible to disassemble and assemble.
● The speed regulating base adopts an infinitely variable speed controller, making it convenient to adjust the speed and ensuring stable operation.
● Snap-on and threaded cutting heads are optional, with wide applications.

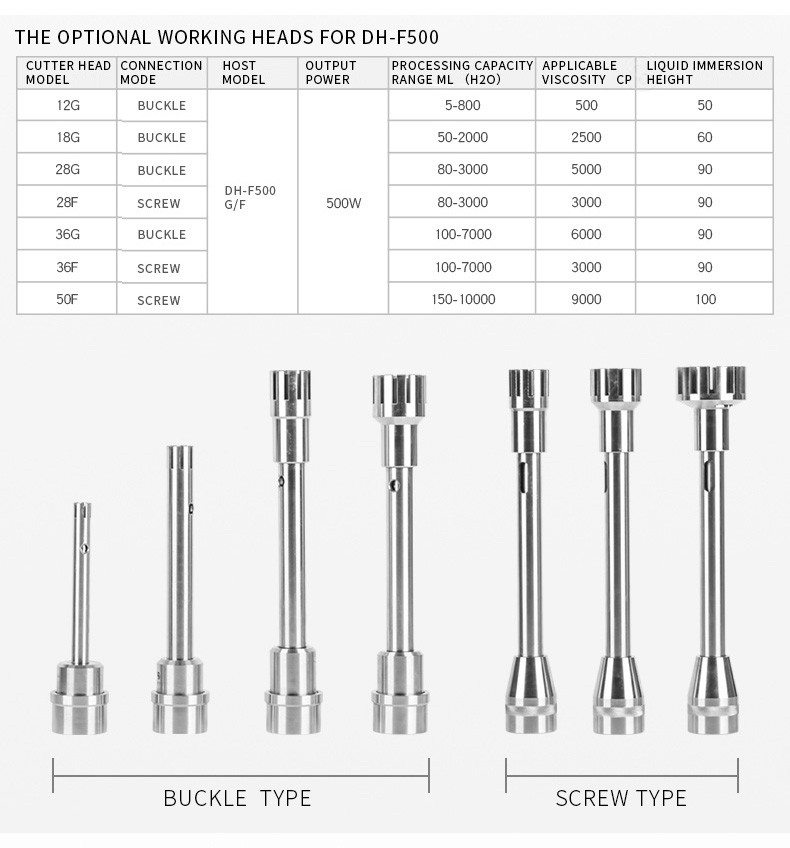

Blade selection
homogenizer_tissuelyser


Technical Parameters
Model: DH-F500
Voltage: 220V/50Hz
Processing Capacity: 5ml~10L (different work heads required)
Speed: 2000-28000rpm
Speed Display: LCD digital display
Speed Control: Stepless speed regulation
Timing Control: 6000min
Torque Display: Yes
Contact Material: SS3
Shaft Sleeve Material: PTFE
Standard Work Head Type: Shear teeth
Maximum Working Temperature: 120℃
Number of Standard Work Heads: 1
Allowable Ambient Temperature: 5~40℃
Allowable Relative Humidity: 80%
Processing Type: Batch processing

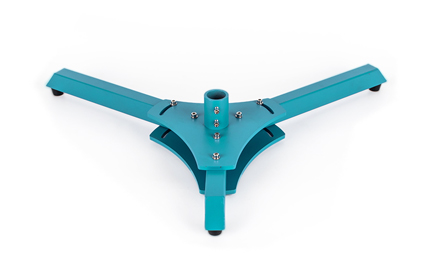

Related Accessories: Work bracket, base
Weight: About 9kg


Single Page - Color Page
Name: Author: Action:
High-speed shearing homogenizer DH-F500 homogenizer Download


Related products
Name: Model:
High-speed shearing homogenizer DH-F500
Handheld electric tissue homogenizer DH-S10
Product List
DH-F500 Unit
Host Machine Unit
Accessories set
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
Base, Work head (optional)
1
1
1
