Typical applications include nanotechnology (production of nanoscale particle materials and graphene dispersions), cell disruption, sample preparation, homogenization, ChIP analysis, emulsification, deagglomeration and disaggregation, as well as applications in the field of sonochemistry.
Product Introduction
650W ultrasonic extraction can safely process various organic and inorganic materials from 250 microliters to 500 milliliters*.
YP series ultrasonic products have typical applications in nanotechnology (production of nanoscale particle materials and graphene dispersions), cell disruption, sample preparation, homogenization, ChIP analysis, emulsification, deagglomeration and disaggregation, as well as applications in the field of sonochemistry.


Product Features
● Energy and temperature setting point control
● Digital circuit + 7-inch wide screen (touch screen)
● Automatic frequency tuning accurate to 1Hz + real-time monitoring of sample temperature
● 99-hour working time setting
● Variable power output control, adjustable from 1 to 99%
● Electric lifting + jog setting
● Frequency automatic search, accuracy ±1Hz and real-time display


Technical Specifications
Model: YP-S650
Power: 650W
Power range: 1%~100%
Processing capacity: 0.5~500ml
With digital intelligent ultrasonic generator: Frequency automatic search
Resonant frequency: Real-time tracking and display
Frequency tracking accuracy: 1Hz Real-time tracking and display

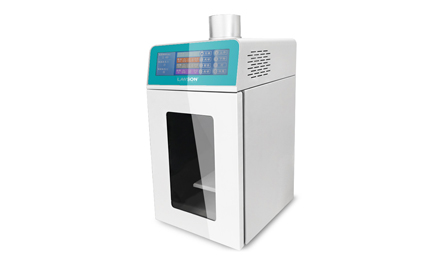

Electric lift soundproof box: The workbench adopts electric lift and lighting device
Display method: 7-inch TFT color screen
Frequency range: 18~25KHz
Total time range: 00:00:01~999:99:99 (hours: minutes: seconds)
Output time: 0.1~99.9 (seconds)
Gap time: 0.1~99.9 (seconds)
Output duty cycle: 0.1~99.9%
Over-temperature protection for materials: 1. Temperature setting: 0-99℃
2. When the material temperature reaches the set value, the ultrasound will stop working, and when the material temperature is 2℃ lower than the set value, the ultrasound will automatically resume working.
Storage documents: 99 groups
Random amplitude bar: Φ6
Optional amplitude bar: Φ2 / Φ3 / Φ10
Protection alarm: Over-temperature, over-current, overload, transducer abnormality, etc.
Power supply: AC110/220V F50/60Hz
Overall dimensions: 280*280*495
Overall weight: 12.4KG
Main unit + transducer weight: 15.0kg
External packaging dimensions: 534*295*435mm


Other Parameters
Transducer Weight: 1680 g
Transducer Size: 256mm×76.5mm
Random Amplitude Bar Weight: 495 g
Random Amplitude Bar Size: 140mm×6mm
Amplitude Bar Material: Titanium Alloy Ti-6Al-4V


Probe Model Selection
Model Disrupted Cell Capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-150ml
Φ10mm 10ml-500ml




Single Page - Color Page
Name: Author: Action:
ultrasonic extraction      YP-S650 ultrasonic Download







Product List
YP-S650 Unit
Host Machine Unit
Vibration System (Transducer Assembly) Set
Special Wrench (used for disassembling the amplitu Set
Special Thermostatic Circulating Reaction Cup Piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
Optional
1
1
1
1
